EMI Filters | 單級电磁干扰滤波器
Using Differential mode and Common mode Combination Choke (DCCC), enhanced insertion loss, small size, low power loss, low cost and good filtering performance
使用单级差模-共模复合电感，具有插入损耗高，滤波效果好，损耗低、尺寸小、成本低等特点。
-
Rated Voltage 额定电压: 250V
-
Operating Frequency 工作频率: 56/60Hz
-
Rated Current 额定电流: 1A to 10A @40 degree C ambient temperature
-
Test Voltage 耐压测试: L-N 1000 VAC, 2s; L,N-E 2000 VAC, 2s
-
Climatic Category 气候类别: 25/085/21 (-25 / +85 degree C)
-
Weight 重量: Approx. 70g
Features & Applications | 特点与应用
Filter with IEC connector, fuse holder and switch
Fuse: 5x20mm
带IEC插座、保险丝插座和开关
保险丝尺寸：5x20mmUsed in electronic equipment, measuring instruments and switch mode power supplies
适用于电子设备、电子测试仪器和开关电源。
C-TUV-US Approval No. 认证号 : CU72121463
Technical Data | 技术参数

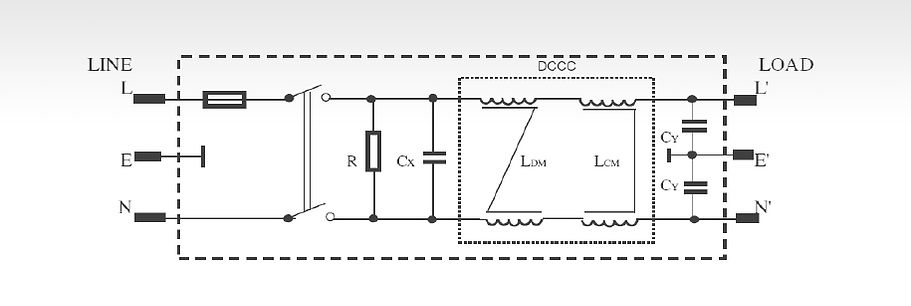

Circuit Diagram
Terminals | 输出端子
Tab connector 6.3 x 0.8mm at output
输出连接器尺寸：6.3 x 0.8mm
Note: Service of producing filter meeting with customers requirement is available
注意：可以根据客户的要求定制滤波器
Type A
Type B
Type C
